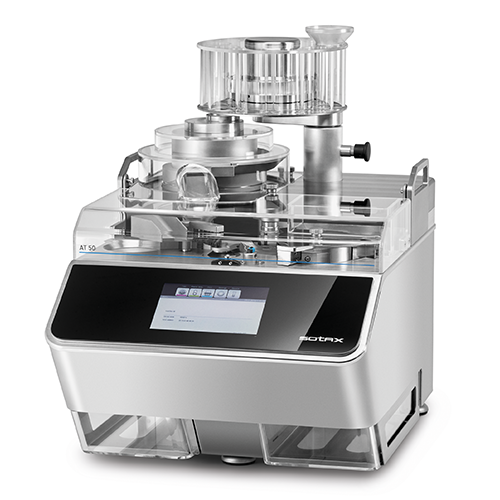

AT50 — One for All

Automatic Tablet Testing System

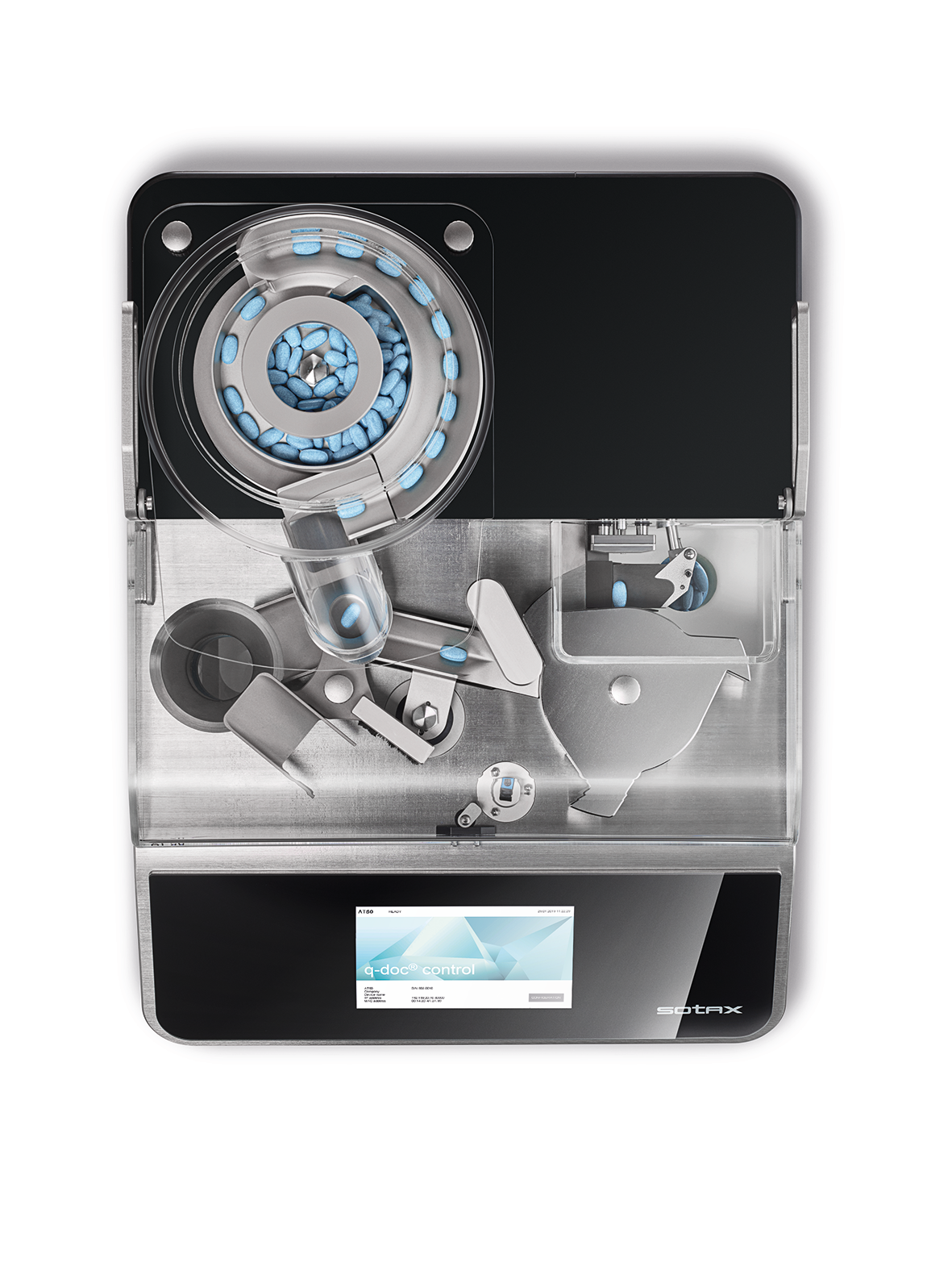

SOTAX AT50 is a fully automated tablet testing device, and well-known for its high-speed, reliability, precision and ease of operation. It features automated measurement of weight, thickness, width, length / diameter and hardness of loading up to 10 different products. Equipped with both AutoAlign™ and SmartAlign™, the AT50 offers reliable orientation of all tablet shapes for repeatable results, including difficult-to-orient oblongs, oval tablets, and even unconventional convex or flat shapes. It can be integrated with powerful q-doc® data management software to automatically protocol all results in full compliance with 21 CFR part 11 requirements.

- A self-adjusting high-speed feeder reliably separates all tablet sizes and shapes directly onto an integrated weighing module.
- Samples are automatically centered on the vibration-resistant platform, accurately measured.
- AutoAlign™ aligns accurately even the most convex shapes for width / length (diameter) / hardness measuring

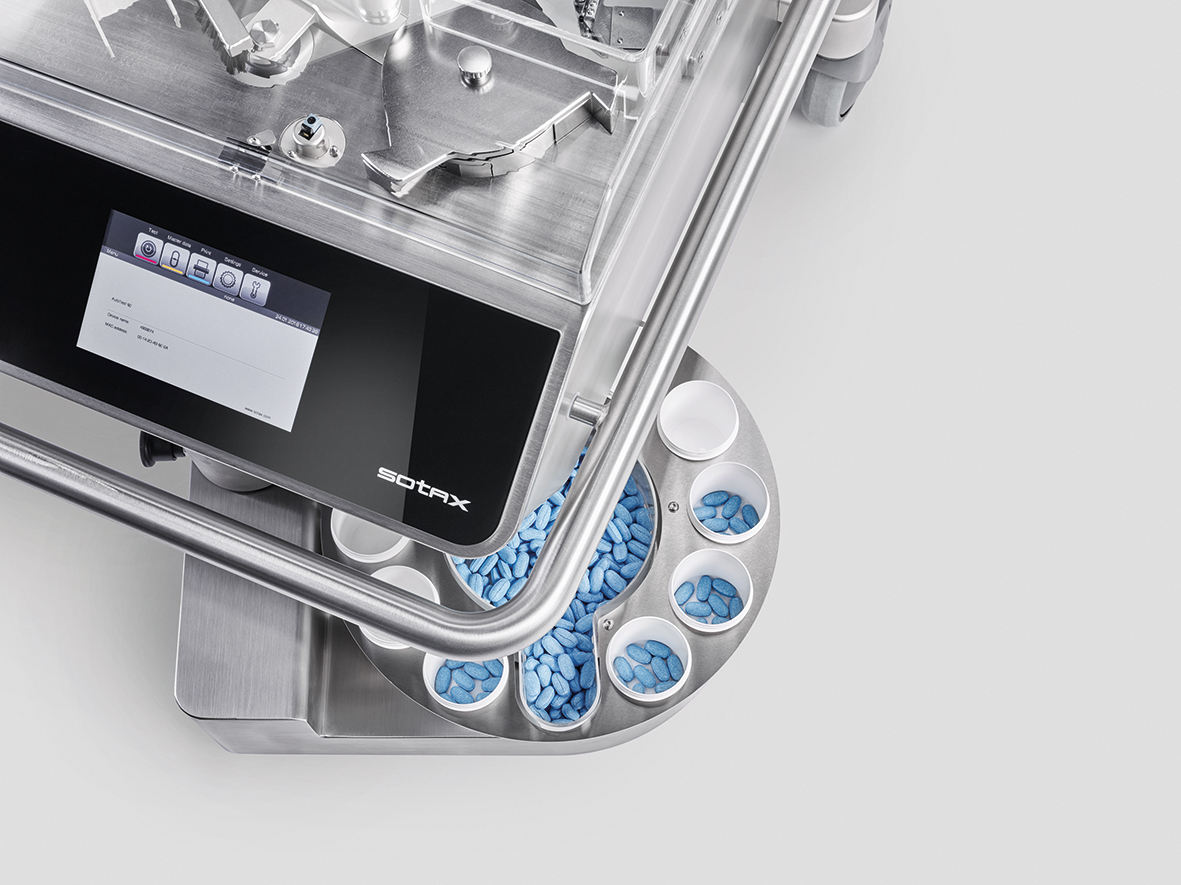

- SmartAdd™ magazine feeder allows flexible interaction and adds new sample sets anytime. Avoids downtime.
- Connects with your tablet press for unattended online testing and automatic self-adjustment of compression parameters

Specifications

Measuring range:
- Weight: up to 60g
- Thickness: 2 – 20mm
- Diameter / Length / width: 2 – 25mm
- Hardness: 2 – 800N
Ingress Protection (against dust and water):IP52
Dimensions (stand-alone): 450mm (W) x 475mm (H) x 600mm (D)
Dimensions (online): 580mm (W) x 527mm (H) x 730mm (D)
